7M HP Brocade Direct Attach Cable , Active SFP+ DAC Cable

Produits

Unmanaged industrieller Schalter

Gehandhabter industrieller Schalter

Ethernet über Koaxialergänzung

DVI zur Faser-Ergänzung

Kontakt mit uns

Kontaktieren Sie uns jetzt

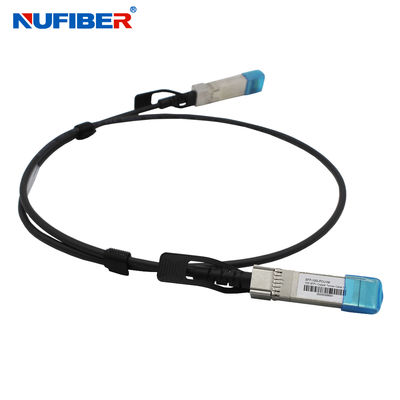

7M HP Brocade Direct Attach Cable , Active SFP+ DAC Cable

Mindestbestellmenge:	1 Stück
Standardverpackung:	1-teiliges Kabel wird in 1 Kasten verpackt,
Lieferfrist:	2~3 Tage
Zahlungsmethode:	T/T, Western Union, l/c
Lieferkapazität:	100.000 PCs pro Monat

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort

CHINA

Markenname

NuFiber

Zertifizierung

CE, RoHS

Modellnummer

SFP-10G-CUXM

Datenrate:

10 GB/s

Anschlusstyp:

SFP+ zu SFP+

Länge:

1m/3m/5m/7m/10m/15m

Material:

Kupferkabel

Anwendung:

FTTH FTTB FTTX -Netzwerk

Draht Awg:

AWG-Lehre 30 als Nichterfüllung

Stromversorgung:

3.3 V

Arbeit Temp.:

0 ~ 70 ℃

Hersteller:

Garantie:

1 Jahr

Beschreibung des Produkts

High Speed 10Gb/s SFP+ Direct Attach Copper DAC cable 1-15M Customized

Description
Nufiber’s high speed SFP+ Direct Attach Cable (DAC) provides high performance in 10 Gigabit Ethernet (10GbE) network applications, using an enhanced SFP+ connector to send 10Gbps data through one paired transmitters and receivers over a thin twinax cable. They are compliant with electrical standards SFF-8431, SFF-8083 and mechanical standard SFF-8432, EEPROM standard SFF-8472.

Key Features

Support for multi-gigabit data rates up to 10.5Gbps
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20PIN footprint
I/O Connector designed for high speed differential signal applications
Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
Compatible with industry standard SFP cages +Switches
EEPROM signature can be customized.
Low Power Consumption < 0.5W
Temperature Range: 0~ 70 °C
RoHS-6 Compliant

Application

10G Ethernet
InfiniBand, Fiber Channel 4G/8G/10G
Sonet Multiplatform support
High Performance Computing Clusters
High End Servers
Metro Network Switch/Cross Connect

Technical Parameter

Parameter	Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Standard Tc	0	25	70	°C
Storage Temperature	Ts	-40		85	°C
Power Supply Voltage	Vcc	3.13	3.3	3.47	V
Power Dissipation	PD			0.5	W
Relative Humidity	RH	5		95	%
Data Rate			10.5		Gbps

Test Type	Test Item	Target	Reference
Electrical Characteristics	Differential Mode RL(SDDII)	0.01<f<4.1 ; < -12+2SQRT(f ) 4. 1<f<11. 1 ; <-6.3+13log10(f/5.5) Where f is in GHz Measurements units: dB	SFF 8431
	Common mode return loss (SCCII)	0.01<f<2.5 ; <-7+1.6(f ) 2.5<f<11.1 ; <-3 Where f is in GHz Measurements units: dB	SFF 8431
	NEXT	<-26dB from 1MHz to 11GHz	/
	Cable assembly Impedence	100+/ -100hm Rise time of 30 ps (20 %- 80 %)	(20%~80 %)
	Insertion Loss Deviation	-1dB≤ILD≤1dB 300KHz≤f≤6GHz	/
Environmental Characteristics	Operating Temperature	-40~85°C	Cable operating temp.range
	Thermal Shock	Electrical performance meet the specification requirement	EIA-364-32D. Method A. TC-1. -55 10 85C,100 cycles, 15 min, dwells
	Cyclic Temp. & Humidity	Electrical performance meet the specification requirement	EIA-364-31 Method III,Test Cond A
	Salt spray	48 hours salt spraying after shell corrosive area less than 5%	EIA-364-26
	Temperature Life	Performance meets the specification requirement	EIA-364-17B w/ RH, Damp heat 85C at 85% RH for 500 hours
Mechanical Characteristics	MechanicaI Vibration	Performance meets the specification requirement	EIA-364-28E.11 TC-VII, Test Cond. D 15minutes in X,Y,Z axis.
	Cable Plug Retention in Cage	90N Min.	No functional damage to cable plug below 90N. Per SFF-8432 Rev 5.0 EIA-455-6B
	Cable Retention in Plug	90N Min.	Clamp and Shock per EIA-364-27B, TC-G, 3times in 6directions, 100g, 6ms
	Mechanical Shock	Performance meets the specification requirement	SFF-8432 Rev 5.0
	Cable plug Insertion	18N(Max.)	SFF-8432 Rev 5.0
	Cable plug extraction	12.5N(Max.)	EIA-364-09; perform plug cycles Plug and Receptacle mate rate:
	Durability	50 Time. No evidence of physical damage	250times/hour

Ordering Information

Part Number	Data Rate	Cable Length	Wire Gauge	Connector	Temp. Range
10G-DAC-3M	Up to 10.5 Gbps	3m	30AWG	Active Copper	0-70℃
10G-DAC-5M	Up to 10.5 Gbps	5m	24AWG	Active Copper	0-70℃
10G-DAC-7M	Up to 10.5 Gbps	7m	24AWG	Active Copper	0-70℃
10G-DAC-9M	Up to 10.5 Gbps	9m	24AWG	Active Copper	0-70℃
10G-DAC-10M	Up to 10.5 Gbps	10m	24AWG	Active Copper	0-70℃
10G-DAC-12M	Up to 10.5 Gbps	12m	24AWG	Active Copper	0-70℃
10G-DAC-15M	Up to 10.5 Gbps	15m	24AWG	Active Copper	0-70℃

Product Show

Packing and Shipping
7M HP Brocade Direct Attach Cable , Active SFP+ DAC Cable 2

Welcome to send us inquiry ! 7/24hours online !

Stichworte:

Produits

Mindestbestellmenge:	1 Stück
Standardverpackung:	1-teiliges Kabel wird in 1 Kasten verpackt,
Lieferfrist:	2~3 Tage
Zahlungsmethode:	T/T, Western Union, l/c
Lieferkapazität:	100.000 PCs pro Monat

Einzelheiten

Beschreibung des Produkts

Einzelheiten

Herkunftsort

CHINA

Markenname

NuFiber

Zertifizierung

CE, RoHS

Modellnummer

SFP-10G-CUXM

Datenrate:

10 GB/s

Anschlusstyp:

SFP+ zu SFP+

Länge:

1m/3m/5m/7m/10m/15m

Material:

Kupferkabel

Anwendung:

FTTH FTTB FTTX -Netzwerk

Draht Awg:

AWG-Lehre 30 als Nichterfüllung

Stromversorgung:

3.3 V

Arbeit Temp.:

0 ~ 70 ℃

Hersteller:

Garantie:

1 Jahr

Min Bestellmenge:

1 Stück

Verpackung Informationen:

1-teiliges Kabel wird in 1 Kasten verpackt,

Lieferzeit:

2~3 Tage

Zahlungsbedingungen:

T/T, Western Union, l/c

Versorgungsmaterial-Fähigkeit:

100.000 PCs pro Monat

Beschreibung des Produkts

Support for multi-gigabit data rates up to 10.5Gbps
Data rates backward compatible to 1Gbps
Hot-pluggable SFP 20PIN footprint
I/O Connector designed for high speed differential signal applications
Improved Pluggable Form Factor(IPF) compliant for enhanced EMI/EMC performance
Compatible with industry standard SFP cages +Switches
EEPROM signature can be customized.
Low Power Consumption < 0.5W
Temperature Range: 0~ 70 °C
RoHS-6 Compliant

Application

10G Ethernet
InfiniBand, Fiber Channel 4G/8G/10G
Sonet Multiplatform support
High Performance Computing Clusters
High End Servers
Metro Network Switch/Cross Connect

Technical Parameter

Parameter	Symbol	Min	Typical	Max	Unit
Operating Case Temperature	Standard Tc	0	25	70	°C
Storage Temperature	Ts	-40		85	°C
Power Supply Voltage	Vcc	3.13	3.3	3.47	V
Power Dissipation	PD			0.5	W
Relative Humidity	RH	5		95	%
Data Rate			10.5		Gbps

Test Type	Test Item	Target	Reference
Electrical Characteristics	Differential Mode RL(SDDII)	0.01<f<4.1 ; < -12+2SQRT(f ) 4. 1<f<11. 1 ; <-6.3+13log10(f/5.5) Where f is in GHz Measurements units: dB	SFF 8431
	Common mode return loss (SCCII)	0.01<f<2.5 ; <-7+1.6(f ) 2.5<f<11.1 ; <-3 Where f is in GHz Measurements units: dB	SFF 8431
	NEXT	<-26dB from 1MHz to 11GHz	/
	Cable assembly Impedence	100+/ -100hm Rise time of 30 ps (20 %- 80 %)	(20%~80 %)
	Insertion Loss Deviation	-1dB≤ILD≤1dB 300KHz≤f≤6GHz	/
Environmental Characteristics	Operating Temperature	-40~85°C	Cable operating temp.range
	Thermal Shock	Electrical performance meet the specification requirement	EIA-364-32D. Method A. TC-1. -55 10 85C,100 cycles, 15 min, dwells
	Cyclic Temp. & Humidity	Electrical performance meet the specification requirement	EIA-364-31 Method III,Test Cond A
	Salt spray	48 hours salt spraying after shell corrosive area less than 5%	EIA-364-26
	Temperature Life	Performance meets the specification requirement	EIA-364-17B w/ RH, Damp heat 85C at 85% RH for 500 hours
Mechanical Characteristics	MechanicaI Vibration	Performance meets the specification requirement	EIA-364-28E.11 TC-VII, Test Cond. D 15minutes in X,Y,Z axis.
	Cable Plug Retention in Cage	90N Min.	No functional damage to cable plug below 90N. Per SFF-8432 Rev 5.0 EIA-455-6B
	Cable Retention in Plug	90N Min.	Clamp and Shock per EIA-364-27B, TC-G, 3times in 6directions, 100g, 6ms
	Mechanical Shock	Performance meets the specification requirement	SFF-8432 Rev 5.0
	Cable plug Insertion	18N(Max.)	SFF-8432 Rev 5.0
	Cable plug extraction	12.5N(Max.)	EIA-364-09; perform plug cycles Plug and Receptacle mate rate:
	Durability	50 Time. No evidence of physical damage	250times/hour

Ordering Information

Part Number	Data Rate	Cable Length	Wire Gauge	Connector	Temp. Range
10G-DAC-3M	Up to 10.5 Gbps	3m	30AWG	Active Copper	0-70℃
10G-DAC-5M	Up to 10.5 Gbps	5m	24AWG	Active Copper	0-70℃
10G-DAC-7M	Up to 10.5 Gbps	7m	24AWG	Active Copper	0-70℃
10G-DAC-9M	Up to 10.5 Gbps	9m	24AWG	Active Copper	0-70℃
10G-DAC-10M	Up to 10.5 Gbps	10m	24AWG	Active Copper	0-70℃
10G-DAC-12M	Up to 10.5 Gbps	12m	24AWG	Active Copper	0-70℃
10G-DAC-15M	Up to 10.5 Gbps	15m	24AWG	Active Copper	0-70℃

Product Show

Packing and Shipping
7M HP Brocade Direct Attach Cable , Active SFP+ DAC Cable 2

Welcome to send us inquiry ! 7/24hours online !
