| Mindestbestellmenge: | 1 Stück |
| Standardverpackung: | 27pcs/Karton, Kartongröße: 55,6*32,8*43,5 cm |
| Lieferfrist: | 1-3 Arbeitstage |
| Zahlungsmethode: | L/C, T/T, Western Union |
| Lieferkapazität: | 5.000 PCs pro Monat |

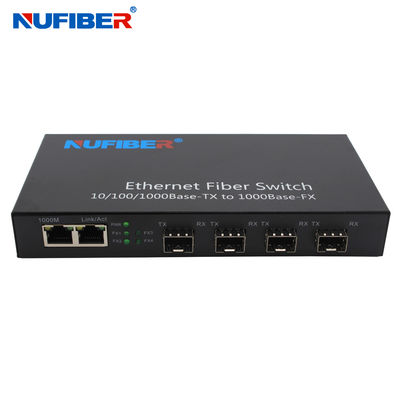

The NF-A4002F is a 10/100/1000Mbps adaptive gigabit Ethernet Fiber Switch. It has two 10/100/1000Mbps Ethernet ports and four 1.25Gbps fiber ports. Users can choose different SFP modules in need. It can extend the transmission distance; there are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.
(1) Support the switch between 10/100/1000Base-T and 1000Base-SX/LX;
(2) 4*1.25Gbps full-duplex fiber ports and 2*1000M Ethernet ports with auto-negotiation function;
(3) Support MDI/MDIX and half/full-duplex with auto-negotiation function;
(4) Each port has the complete LED Indicator light ;
(5) Support IEEE802.1d Spanning Tree;
(6) Support IEEE802.1q and VLAN division;
(7) Support high performance QoS function on each port;
(8) Support 5-16V voltage input;
(9) Require no configuration and will instantly operate as soon as you power it up;
(10) Use Marvel chip, stable and reliable;
(11) Low power consumption chip with heat sink built in to ensure longtime efficient operation.
Technical Specifications:
| Standards |
IEEE802.3 10Base-T IEEE802.3u 100Base-TX/FX IEEE802.3ab 1000Base-T IEEE802.3z 1000Base-SX/LX |
IEEE802.3x Flow control IEEE802.1p QoS IEEE802.1d Spanning Tree IEEE802.1q VLAN |
| Certifications | CCC, CE, FCC, RoHS | |
| Ethernet Port |
Connector: RJ45 Data Rate: 10/100/1000M Distance: 100m UTP Type: UTP-5E or higher level |
|
| Fiber Port |
Connector: SFP slot Data Rate: 1.25Gbps Optical Wavelength: 850nm/1310nm/1490nm/1550nm Distance: 550m～100km |
|
| Performance |
Processing Type : Store and Forward MAC Table Size: 1K Buffer Space: 1Mbit Back bandwidth: 14G Time Delay:＜20μs |
|
| Power |
Power type: external power supply Input Voltage: AC100V～240V 50/60Hz Connector: DC Socket Working Voltage: 5V Power Consumption: 1.8W～5W |
|
| Environment |
Storage Temperature: -40～70℃ Operating Temperature: -10～55℃ Relative Humidity: 5-90% ( no condensation) |
|
| Warranty | 3 year | |
| Physical Characteristics |
Dimension: 160×84×26mm Weight: 0.30kg Color: Metal, Black |
|
Packing & Shipping:
